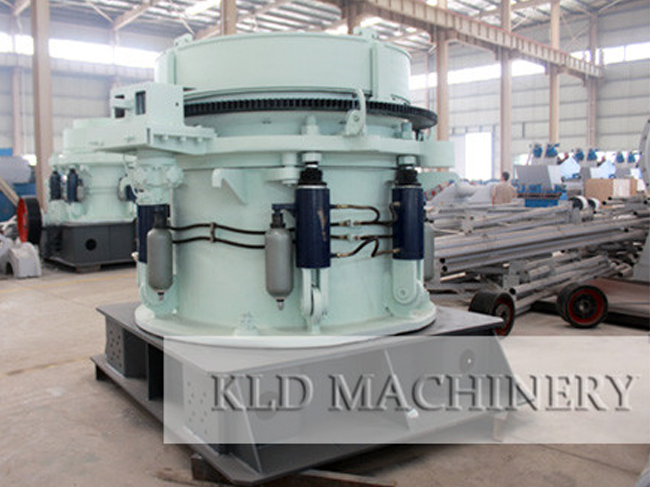

Product Introduction of Cone Crusher
The cone crusher is used for the crushing of raw materials in metallurgy, architecture, road construction, chemistry, and silicate industry which can Grind the mid-hard ore and rock. Cone crushers adapt to medium and fine size ore and rock with large crushing ratio, high efficiency, low energy consumption, even particle size.

Working principle
The materiel will be delivered to the crushing chamber through the feed hopper at the top and the crushed material will be collected at the discharge hopper at the bottom of the machine.
And The materiel will be crushed inside by the moving cone and the bowl liner, guiding by the main shaft. Piston is moving up and
 down by the oil pusher who comes by the oil station to give easy moving and good result.

Type	Diameter of  cylinder (mm）	Feeding size (mm)	Adjustment range of output size (mm)	Capacity (t/h)	Rotation speed (r/min)	Power (kw)	Overall size (mm）	Weight (t)
PYB900	900	115	15-50	50-90	333	55	2692*1640*2350	11.2
PYZ900	900	60	5-20	20-65	333	55	2692*1640*2350	11.2
PYD900	900	50	3-13	15-50	333	55	2692*1640*2350	11.3
PYB1200	1200	145	20-50	110-168	300	110	2790*1878*2844	24.7
PYZ1200	1200	100	8-25	42-135	300	110	2790*1878*2844	25
PYD1200	1200	50	3-15	18-105	300	110	2790*1878*2844	25.3
PYB1200	1750	215	25-50	280-480	245	160	3910*2894*3809	50.3
PYZ1200	1750	185	10-30	115-320	245	160	3910*2894*3809	50.3
PYD1200	1750	85	5-13	75-230	245	160	3910*2894*3809	50.2
PYB1200	2200	300	30-60	59-1000	220	260-280	4622*3302*4470	80
PYZ1200	2200	230	10-30	200-580	220	260-280	4622*3302*4470	80
PYD1200	2200	100	5-15	120-340	220	260-280	4622*3302*4470	81
